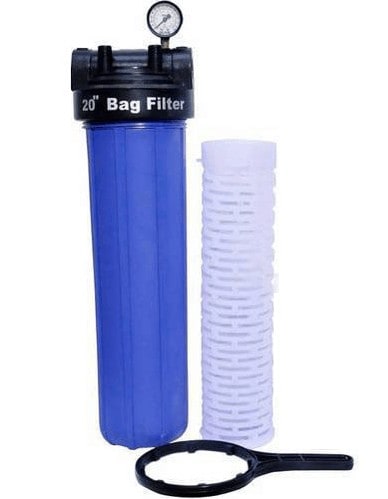

20-Inch Bag Filter Housing Assembly
High-Flow Filtration Solution for Industrial & Commercial Applications
Overview
The 20-Inch Bag Filter Housing Assembly is designed for high-flow filtration, making it ideal for industrial, commercial, and large-scale water treatment applications. Constructed from reinforced polypropylene, it ensures durability, corrosion resistance, and long-term reliability.
This filter housing is equipped with a pressure relief valve, pressure gauge, and a 5-micron filter bag, offering efficient particle removal and easy maintenance.
Key Features
High Flow Filtration – Handles large water volumes efficiently.
Reinforced Polypropylene Construction – Provides durability & corrosion resistance.
Pressure Relief Valve – Enables safe & easy cartridge replacement.
Integrated Pressure Gauge – Helps monitor pressure levels for optimal performance.
Bag Cage Included – Ensures secure filter placement & effective filtration.
Spanner Included – Simplifies installation & maintenance.
Standard 1.5″ Inlet & Outlet Connections – Allows seamless system integration.
5-Micron Bag Filter Included – Offers effective sediment & particle removal.
Technical Specifications
| Specification | Details |
|---|---|
| Product | 20-Inch Bag Filter Housing Assembly |
| Material of Construction (MOC) | Reinforced Polypropylene |
| Filter Type | Bag Filter |
| Included Bag Micron Rating | 5 Microns |
| Inlet-Outlet Connection | 1.5″ Threaded |
| Maximum Pressure Rating | 90 PSI |
| Pressure Relief Valve | Included |
| Pressure Gauge | Supplied with Housing |
| Bag Cage | Included for Secure Filter Placement |
| Spanner | Included for Easy Maintenance |
| Application | Industrial Water Filtration, RO Pre-Treatment, Commercial Water Systems |
| HSN Code | 8421 |
| Color | Blue |
Applications
Industrial Water Treatment – Removes sediment, sludge, & large contaminants.
Pre-Treatment for Reverse Osmosis (RO) Systems – Extends membrane life.
Commercial Water Systems – Ideal for hotels, hospitals, & food processing.
Manufacturing & Processing Plants – Ensures cleaner process water.
High-Flow Filtration Needs – Handles large-scale filtration requirements.
Installation & Maintenance
Mount Securely – Install in a stable location with easy access.
Use Compatible Bag Filters – Supports standard 20-inch filter bags.
Monitor Pressure Gauge – Prevents overpressure & ensures efficiency.
Replace Bag Filters as Needed – Based on water quality & usage.
Use Pressure Relief Valve – To safely release pressure before maintenance.
Why Choose This Bag Filter Housing?
Robust & High-Performance – Designed for heavy-duty filtration applications.
Handles High Flow & Pressure – Ensures consistent water quality.
Versatile Application – Ideal for industrial & commercial water systems.
Hassle-Free Installation & Maintenance – Easy to use & replace bag filters.

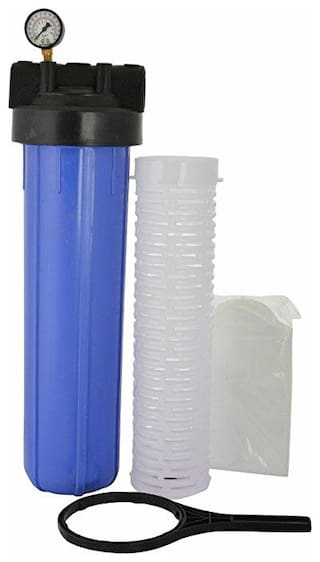

Package Includes
1 x 20-Inch Bag Filter Housing Assembly
1 x 5-Micron Bag Filter
1 x Pressure Gauge
1 x Bag Cage
1 x Spanner for Installation & Maintenance
